Relational Databases and SQL (Structured Query Language)

A database is an organized collection of structured information, typically stored in the form of tables (rows & columns). Relational databases allow storing and retrieving different kinds of related information e.g. products, customers, and orders for an online shopping site. Structured Query Language or SQL (pronounced "sequel") is the most widely used language for interacting with relational databases, and is an essential skill for Data Science professionals.

The following topics are covered in this tutorial:

Use cases and design of relational databases and SQL
Setting up a database locally using MySQL server
Creating, modifying and deleting databases and database tables
SQL Data types and constraints (primary key, foreign key)
CRUD (Create, Read, Update and Delete) operations on tables
Exporting and importing data from relational databases

Problem Statement

We'll learn about relational database and SQL by working through the following problem (source):

QUESTION: Classic Models Inc. is a manufacturer of small scale models of cars, motorcycles, planes, ships trains etc. Products manufactured by Classic Models are sold in toy & gift stores around the world. Here's a small sample of their products (source):

Classic Models has offices around the world with dozens of employees. The customers of Classic Models are typically toy/gift stores. Each customer has a designated sales representative (an employee of Classic Models) they interact with. Customers typically place orders requesting several products in different quantities and pay for multiple orders at once via cheques.

Create a database to record and manage all of the above information. The database will also be used for day-to-day operations (adding customers, placing orders, recording payments, hiring employees etc.).

Relational Databases

There are many ways of storing data on a computer (text files, JSON files, CSV files, spreadsheets etc.). A relational database is a data storage system with the following properties:

Data is stored in tables e.g., customers, products, offices, employees, etc..
Each table has a set of columns. Each column is used to store a specific type of data.
Data is stored as rows (also called records) within database tables.
Tables support CRUD operations on rows: Create, Read, Update and Delete
Table can be connected to other tables using relationship constraints (e.g. an employee works at a specific office).
Information can be retrieved from the database using the Structured Query Language (SQL)
Databases can be hosted locally (on your computer) or on the cloud, for distributed access.

Here's what a table in a relational database looks like:

Entity Relationship Diagrams

While setting up a relational database, it's common to create an "Entity Relationship Diagram" (ERD) to describe all the tables within the database and the relations between them. ERDs can be created using drawing tools like LucidChart. Here's the ERD for the Classic Models database:

Relational Database Software

There are several relational database software packages. Some are free and open source, while others are paid and proprietary. Here some popular relational database distributions:

MySQL
Postgres
SQLite
Microsoft SQL Server
MariaDB
Oracle
IBM DB2

For this tutorial, we'll use MySQL, a free and open source relational database.

Structured Query Language

Structured Query Language or SQL is a programming language for interacting with relational databases. Unlike general purpose programming languages like Python, Java, C++ etc., SQL has a very limited syntax.

SQL Statements and Syntax

There are three types of SQL statements:

1. Data Definition Language(DDL): The Data Definition Language contains commands that are less frequently used. DDL commands modify the actual structure of a database, rather than the database’s contents. example:

Generating a table
Modifying a structure of a table (altering)

2. Data Control Language(DCL): The Data Control Language allows you to manipulate and manage user access rights on database objects. It consists of two commands:

the GRANT command, used to add database permissions for a user,
and the REVOKE command, used to remove existing permissions.

These two commands form the core of the relational database security model.

3. Data Manipulation Language (DML): Data Manipulation Language contains the subset of SQL commands used most frequently. It is used for searching, inserting, updating, and deleting data that we will see in this notebook.

Some quick notes on the SQL syntax:

SQL is case insensitive. You can type statements in upper case, lowercase or a mixture of both
Database names can be typed with or without backquotes i.e. classicmodels or `classicmodels`
SQL statement can span over multiple lines and must end with a semicolon ;
The statements in this tutorial can be executed on the MySQL command line or the workbench

The SQL syntax for each relational database software package is slightly different. Check the official documentation of your DB for details.

Setting up MySQL Server Locally

Install the following:

MySQL server: https://dev.mysql.com/downloads/mysql/
MySQL workbench: https://dev.mysql.com/downloads/workbench/

You'll be asked to set a root password while installing MySQL server.

Note: Make sure the password contains only numbers and alphabets. Avoid spaces/special characters in your password.

To interact with the MySQL server via the terminal use:

$ /usr/local/mysql/bin/mysql -u root -p

Depending on your operating system the path /usr/local/mysql/bin/mysql may be different. If you're unable to connect, make sure that the server is running and you're using the correct password.

Alternatively, the MySQL Workbench can be used to interact with a MySQL server (local or remote) via a GUI.

Working with Databases

You can find all the SQL statements used in this tutorial in this SQL file.

Let's set up a database for Classic Models. We'll explore SQL statements for listing, creating and deleting databases along the way.

Listing Databases

To display available databases, use the statement:

SHOW DATABASES;

Output:

+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
4 rows in set (0.01 sec)

Creating Databases

Databases can be created using the CREATE DATABASE statement.

CREATE DATABASE `classicmodels`;

Once created, the database should appear in the list of databases

SHOW DATABASES;

Output:

+--------------------+
| Database           |
+--------------------+
| classicmodels      |
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
5 rows in set (0.00 sec)

We can also conditionally create a database if it doesn't already exist using:

CREATE DATABASE IF NOT EXISTS `classicmodels`;

Selecting a Database

A database must be selected before it can be used. This is done with the USE statement.

USE `classicmodels`;

All future statements like listing tables, creating tables, inserting or querying data will use the selected database.

Deleting a Database

To delete a database, use DROP DATABASE

DROP DATABASE `classicmodels`;

The database will no longer show up in the list of databases.

SHOW DATABASES;

Output:

+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
4 rows in set (0.01 sec)

EXERCISE: Create, use and delete some databases using the commands covered in this section. Can you figure out how to rename an existing database?

Let's recreate the database before continuing:

CREATE DATABASE IF NOT EXISTS `classicmodels`;
USE `classicmodels`;

Working with Tables

Let's create the tables for the Classic Models database according to the given Entity Relationship Diagram. We will also insert some data along the way.

Tables in a database can be listed using the SHOW TABLES statement
Tables are created using the CREATE TABLE statement
Tables are deleted using the DROP TABLE statement
You can view the structure of a table using the DESCRIBE statement
Data can be inserted into a table using the INSERT INTO statement

While creating tables, we specify a list of columns and the data type for each column.

CREATE TABLE table_name (
    column1 datatype,
    column2 datatype,
    column3 datatype,
   ....
);

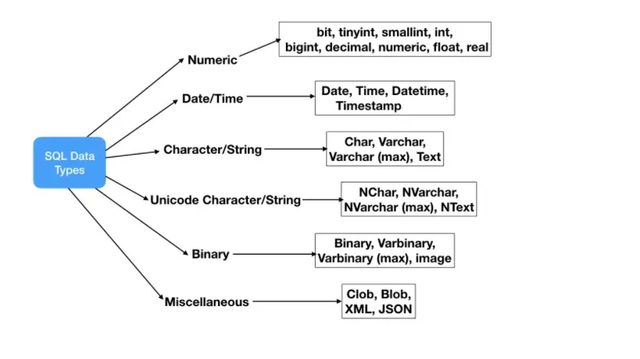

SQL Data Types

The following data types are supported in most relational databases (source):

Offices

The offices table can be created as follows:

DROP TABLE IF EXISTS `offices`;

CREATE TABLE `offices` (
  `officeCode` varchar(10) NOT NULL,
  `city` varchar(50) NOT NULL,
  `phone` varchar(50) NOT NULL,
  `addressLine1` varchar(50) NOT NULL,
  `addressLine2` varchar(50),
  `state` varchar(50),
  `country` varchar(50) NOT NULL,
  `postalCode` varchar(15) NOT NULL,
  `territory` varchar(10) NOT NULL,
  PRIMARY KEY (`officeCode`)
);

Primary Key: Note that we've included a PRIMARY KEY constraint on the officeCode column.

The PRIMARY KEY constraint uniquely identifies each record in a table.
Primary keys must contain UNIQUE values, and cannot contain NULL values.
A table can have only ONE primary key constraint; and in the table, this primary key can consist of single or multiple columns (fields).

We can check that the database is created using SHOW TABLES; and view information about it using DESCRIBE `offices`;

Inserting Data: We can insert some rows into the table using the INSERT INTO statement.

INSERT INTO `offices`

(`officeCode`,`city`,`phone`,`addressLine1`,`addressLine2`,`state`,`country`,`postalCode`,`territory`) VALUES

('1','San Francisco','+1 650 219 4782','100 Market Street','Suite 300','CA','USA','94080','NA'),

('2','Boston','+1 215 837 0825','1550 Court Place','Suite 102','MA','USA','02107','NA'),

('3','NYC','+1 212 555 3000','523 East 53rd Street','apt. 5A','NY','USA','10022','NA'),

('4','Paris','+33 14 723 4404','43 Rue Jouffroy D\'abbans',NULL,NULL,'France','75017','EMEA'),

('5','Tokyo','+81 33 224 5000','4-1 Kioicho',NULL,'Chiyoda-Ku','Japan','102-8578','Japan'),

('6','Sydney','+61 2 9264 2451','5-11 Wentworth Avenue','Floor #2',NULL,'Australia','NSW 2010','APAC'),

('7','London','+44 20 7877 2041','25 Old Broad Street','Level 7',NULL,'UK','EC2N 1HN','EMEA');

The INSERT statement has the following general syntax:

INSERT INTO table_name(column_1, column_2,...) VALUES (value1_1,value1_2,...), (value2_1,value2_2,...), ...;

If you're inserting values for all the columns, you can skip the column names:

INSERT INTO table_name VALUES (value1_1, value1_2, ...), (value2_1,value2_2,...), ...;

Viewing Data: The simplest way to view data from the table is using the SELECT statement. It has the following syntax:

SELECT column1, column2, ... FROM table_name;

You can also view data from all columns using

SELECT * FROM `offices`;

EXERCISES:

Add some more entires into the offices table, using just the required (NOT NULL) columns.

Explore what happens if you don't provide a value for a column marked as not null.

Try adding an entry with a primary key matching the an existing entry.

Retrieve and display just the city and phone number information for each office.

Employees

The employees table can be created using the following code:

DROP TABLE IF EXISTS `employees`;

CREATE TABLE `employees` (
  `employeeNumber` int(11) NOT NULL,
  `lastName` varchar(50) NOT NULL,
  `firstName` varchar(50) NOT NULL,
  `extension` varchar(10) NOT NULL,
  `email` varchar(100) NOT NULL,
  `officeCode` varchar(10) NOT NULL,
  `reportsTo` int(11) DEFAULT NULL,
  `jobTitle` varchar(50) NOT NULL,
  PRIMARY KEY (`employeeNumber`),
  FOREIGN KEY (`reportsTo`) REFERENCES `employees` (`employeeNumber`),
  FOREIGN KEY (`officeCode`) REFERENCES `offices` (`officeCode`)
);

Foreign Keys: A FOREIGN KEY is a field (or collection of fields) in one table, that refers to the PRIMARY KEY in another table.

We've added a foreign key constraint for the the officeCode column, connecting it with the offices table. This ensure that we can't set an employee's officeCode to an invalid value.
A foreign key constraint can also be established between a table and itself, as done in the case of the reportsTo column.

Inserting Data: Let's insert some data into the table:

INSERT INTO `employees` VALUES
(1002,'Murphy','Diane','x5800','dmurphy@classicmodelcars.com','1',NULL,'President'),
(1056,'Patterson','Mary','x4611','mpatterso@classicmodelcars.com','1',1002,'VP Sales'),
(1076,'Firrelli','Jeff','x9273','jfirrelli@classicmodelcars.com','1',1002,'VP Marketing'),
(1088,'Patterson','William','x4871','wpatterson@classicmodelcars.com','6',1056,'Sales Manager (APAC)'),
(1102,'Bondur','Gerard','x5408','gbondur@classicmodelcars.com','4',1056,'Sale Manager (EMEA)'),
(1143,'Bow','Anthony','x5428','abow@classicmodelcars.com','1',1056,'Sales Manager (NA)'),
(1165,'Jennings','Leslie','x3291','ljennings@classicmodelcars.com','1',1143,'Sales Rep'),
(1166,'Thompson','Leslie','x4065','lthompson@classicmodelcars.com','1',1143,'Sales Rep'),
(1188,'Firrelli','Julie','x2173','jfirrelli@classicmodelcars.com','2',1143,'Sales Rep'),
(1216,'Patterson','Steve','x4334','spatterson@classicmodelcars.com','2',1143,'Sales Rep'),
(1286,'Tseng','Foon Yue','x2248','ftseng@classicmodelcars.com','3',1143,'Sales Rep'),
(1323,'Vanauf','George','x4102','gvanauf@classicmodelcars.com','3',1143,'Sales Rep'),
(1337,'Bondur','Loui','x6493','lbondur@classicmodelcars.com','4',1102,'Sales Rep'),
(1370,'Hernandez','Gerard','x2028','ghernande@classicmodelcars.com','4',1102,'Sales Rep'),
(1401,'Castillo','Pamela','x2759','pcastillo@classicmodelcars.com','4',1102,'Sales Rep'),
(1501,'Bott','Larry','x2311','lbott@classicmodelcars.com','7',1102,'Sales Rep'),
(1504,'Jones','Barry','x102','bjones@classicmodelcars.com','7',1102,'Sales Rep'),
(1611,'Fixter','Andy','x101','afixter@classicmodelcars.com','6',1088,'Sales Rep'),
(1612,'Marsh','Peter','x102','pmarsh@classicmodelcars.com','6',1088,'Sales Rep'),
(1619,'King','Tom','x103','tking@classicmodelcars.com','6',1088,'Sales Rep'),
(1621,'Nishi','Mami','x101','mnishi@classicmodelcars.com','5',1056,'Sales Rep'),
(1625,'Kato','Yoshimi','x102','ykato@classicmodelcars.com','5',1621,'Sales Rep'),
(1702,'Gerard','Martin','x2312','mgerard@classicmodelcars.com','4',1102,'Sales Rep');

EXERCISES:

Try inserting an entry into employees with an invalid value for officeCode.

Try inserting an entry into employees with an invalid value for reportsTo.

Create a new office location and add some employees for the new location.

Customers

The customers table can be created using the following code:

CREATE TABLE IF NOT EXISTS `customers` (
  `customerNumber` INT(11) NOT NULL,
  `customerName` VARCHAR(50) NOT NULL,
  `contactLastName` VARCHAR(50) NOT NULL,
  `contactFirstName` VARCHAR(50) NOT NULL,
  `phone` VARCHAR(50) NOT NULL,
  `addressLine1` VARCHAR(50) NOT NULL,
  `addressLine2` VARCHAR(50) NULL DEFAULT NULL,
  `city` VARCHAR(50) NOT NULL,
  `state` VARCHAR(50) NULL DEFAULT NULL,
  `postalCode` VARCHAR(15) NULL DEFAULT NULL,
  `country` VARCHAR(50) NOT NULL,
  `salesRepEmployeeNumber` INT(11) NULL,
  `creditLimit` DOUBLE NULL DEFAULT NULL,
  `customerLocation` POINT NOT NULL,
  PRIMARY KEY (`customerNumber`),
  FOREIGN KEY (`salesRepEmployeeNumber`) REFERENCES `employees` (`employeeNumber`));

EXERCISE: Add some customers to the database using the data from this SQL file: https://raw.githubusercontent.com/harsha547/ClassicModels-Database-Queries/master/database.sql

Querying with `WHERE`

We can add a WHERE clause to a SELECT statement to select just the rows satisfying the given clause. Here's an example:

SELECT * FROM `employees` WHERE `jobTitle`="Sales Rep";

Note that values with spaces must be placed within quotes e.g. "Sales Rep".

The WHERE clause supports the following operators:

=
>
<
>=
<=
<> or !=
BETWEEN
LIKE
IN

Expressions within a WHERE clause can be combined using AND and OR.

SELECT column1, column2, ...
FROM table_name
WHERE condition1 AND condition2 AND condition3 ...;

An expression within a WHERE clause can be negated using NOT.

SELECT column1, column2, ...
FROM table_name
WHERE NOT condition;

You can use a WHERE clause with SELECT, UPDATE, and DELETE statements.

EXERCISES:

List the customers in the United States with a credit limit higher than \$1000.

List the employee codes for sales representatives of customers in Spain, France and Italy. Make another query to list the names and email addresses of those employees.

Change the job title "Sales Rep" to "Sales Representative"

Delete the entries for Sales Representatives working in London.

Show a list of employees who are not sales representatives

Show a list of customers with "Toys" in their name

Product Lines and Products

The Product Lines table can be created as follows:

DROP TABLE IF EXISTS `productlines`;

CREATE TABLE `productlines` (
  `productLine` varchar(50) NOT NULL,
  `textDescription` varchar(4000) DEFAULT NULL,
  `htmlDescription` mediumtext,
  `image` mediumblob,
  PRIMARY KEY (`productLine`)
);

The Products table can be created as follows:

DROP TABLE IF EXISTS `products`;

CREATE TABLE `products` (
  `productCode` varchar(15) NOT NULL,
  `productName` varchar(70) NOT NULL,
  `productLine` varchar(50) NOT NULL,
  `productScale` varchar(10) NOT NULL,
  `productVendor` varchar(50) NOT NULL,
  `productDescription` text NOT NULL,
  `quantityInStock` smallint(6) NOT NULL,
  `buyPrice` decimal(10,2) NOT NULL,
  `MSRP` decimal(10,2) NOT NULL,
  PRIMARY KEY (`productCode`),
  CONSTRAINT `products_ibfk_1` FOREIGN KEY (`productLine`) REFERENCES `productlines` (`productLine`)
);

EXERCISE: Add some product lines and products from this SQL file: https://raw.githubusercontent.com/harsha547/ClassicModels-Database-Queries/master/database.sql

`ORDER BY` and `LIMIT`

The results of a Select statement can be ordered using the ORDER BY clause:

SELECT column1, column2, ...
FROM table_name
ORDER BY column1, column2, ... ASC|DESC;

To limit the number of results, use the LIMIT clause:

SELECT column_name(s)
FROM table_name
WHERE condition
LIMIT number;

EXERCISES:

List the 5 most expensive products from the "Planes" product line

Identify the products that are about to run out of stock (quantity in stock < 100)

List 10 products in the "Motorcycles" category with the lowest buy price and more than 1000 units in stock

Orders, Order Details and Payments

EXERCISE: Create the Orders, Order Details and Payments tables using the CREATE TABLE statement. Include proper primary key and foreign key constraints. Add some data into each of the tables (sample data).

Modifying Table Structure

The structure of the table can be modified using ALTER TABLE

Adding a new column to a table:

ALTER TABLE table_name ADD column_name datatype;

Removing a column from a table:

ALTER TABLE table_name DROP COLUMN column_name;

Changing the data type of a column:

ALTER TABLE table_name MODIFY COLUMN column_name datatype;

Renaming a column:

ALTER TABLE table_name RENAME COLUMN old_column_name TO new_column_name;

EXERCISE: Add, remove and modify one column in each of the tables created above. What happens when you rename or remove a column that is a primary key?

Importing and Exporting SQL

Multiple SQL commands can be placed into a .sql file (like this one) and can be executed together using the msql console or workbench.

$ /usr/local/mysql/bin/mysql -u root -p < database.sql

This is a great way to import data into a SQL database.

To export a database as a SQL file, use the mysqldump utility:

$ /usr/local/mysql/mysqldump --add-drop-table -u root dbname -p > dbname.sql

EXERCISES: Perform the following operations, in the given order:

Download this SQL file and import data from your local installation of the MySQL server.

Export the classicmodels database into a SQL file. Compare it with the originally imported SQL file.

Drop the classicmodels database and recreate it using the exported SQL file.

SQL Challenges

Set up the Classic Models dataset locally with example data using the SQL script: https://raw.githubusercontent.com/JovianHQ/notebooks/refs/heads/main/sql-and-business-intelligence/ClassicModels.sql

Prepare a list of offices sorted by country, state, city.

???

How many employees are there in the company?

???

What is the total of payments received?

???

List the product lines that contain 'Cars'.

???

Report total payments for October 28, 2004.

???

Report those payments greater than \$100,000.

???

List the products in each product line.

???

How many products in each product line?

???

What is the minimum payment received?

???

List all payments greater than twice the average payment.

???

What is the average percentage markup of the MSRP on buyPrice?

???

How many distinct products does ClassicModels sell?

???

Report the name and city of customers who don't have sales representatives?

???

What are the names of executives with VP or Manager in their title? Use the CONCAT function to combine the employee's first name and last name into a single field for reporting.

???

Which orders have a value greater than $5,000?

???

Solution

Summary and Further Reading

The following topics were covered in this tutorial:

Use cases and design of relational databases and SQL
Installation of MySQL and setting up a database locally
Creating, modifying and deleting databases and database tables
SQL Data types and constraints (primary key, foreign key)
CRUD (Create, Read, Update and Delete) operations on tables
Exporting and importing data from relational databases

Check out the following resources to learn more:

ClassicModels Database: https://www.mysqltutorial.org/mysql-sample-database.aspx
MySQL server installation - https://dev.mysql.com/downloads/mysql/
MySQL workbench installation - https://dev.mysql.com/downloads/workbench/
MySQL documentation - https://dev.mysql.com/doc/
More on SQL datatypes - https://www.journaldev.com/16774/sql-data-types
More on MySQL UPDATE statement - https://www.w3schools.com/mysql/mysql_update.asp
More on MySQL DELETE statement - https://www.w3schools.com/mysql/mysql_delete.asp
SQL Challenges - https://web.archive.org/web/20210512173942/https://www.richardtwatson.com/dm6e/Reader/ClassicModels.html
SQL Challenges solutions - https://github.com/harsha547/ClassicModels-Database-Queries/tree/master/challenges

In the next tutorial, we'll cover the following topics:

Using functions for advanced querying on strings dates, timestamps etc.
Aggregating data using COUNT, AVERAGE, SUM, MIN, MAX etc.
Using joins to combine and query data from multiple tables at once
Improving query performance with keys, indexes and transactions
Connecting to SQL database from Python for querying and visualization in Jupyter

Revision Questions

What are Relational databases?
What are the properties of relational databases?
What is an ERD?
What are few relational databases software packages?
What is SQL?
What are SQL statements?
How to list all the available databases?
What is the syntax to create a new database?
How to select a database to in order to use it?
What is the syntax to delete a database?
What is the syntax to rename an existing database?
What is the syntax to check if a database exists or not?
How to view structure of a table?
What are the different SQL data types?
What is a PRIMARY KEY? What are the properties of a PRIMARY KEY?
What is a FOREIGN KEY?
What is REFERENCES clause in SQL?
What is a CONSTRAINT in SQL?
How to view data in a table?
How to add new rows of data in SQL?
What operators does WHERE clause support?
How to combine expressions within a WHERE clause?
What does ORDERY BY clause do in SQL?
What does LIMIT clause do SQL?
How to modify a table structure?
How to change data type of a column?
How to add new column to the table?
How to rename a column in SQL?
How to import data into SQL database?
How to export data from SQL database?

Solutions for Exercises

EXERCISE: Create, use and delete some databases using the commands covered in this section. Can you figure out how to rename an existing database?

Create

CREATE DATABASE `jovian_data`;

SHOW DATABASES;

Output:

+--------------------+
| Database           |
+--------------------+
| classicmodels      |
| information_schema
| jovian_data
| mysql              |
| performance_schema |
| sys                |
+--------------------+
6 rows in set (0.00 sec)

Use

USE `jovian_data`

Delete

DROP DATABASE `jovian_data`

To rename the existing database - you can create a new database exactly as the old database with a different name and then drop the old database. Renaming database query has been disabled in new versions of MySQL due to security risks.

EXERCISES:

Add some more entires into the offices table, using just the required (NOT NULL) columns.

Explore what happens if you don't provide a value for a column marked as not null.

Try adding an entry with a primary key matching the an existing entry.

Retrieve and display just the city and phone number information for each office.

Add some more entires into the offices table, using just the required (NOT NULL) columns.

DESCRIBE offices;

INSERT INTO offices (officeCode, city, phone, addressline1, country, postalCode,territory,officelocation)
VALUES ('jovian', 'Bengaluru', '+919744324587', '34/7, Koramangal', 'India', '560010','South',POINT(1,2));

Explore what happens if you don't provide a value for a column marked as not null.

INSERT INTO offices (city,phone,addressline1,country,postalcode,territory)
VALUES('Hyderabad','+919733345588','32/4, Oldcity', 'India','432201','East');

Error Code: 1364. Field 'officeCode' doesn't have a default value

Try adding an entry with a primary key matching the an existing entry.

INSERT INTO offices (officeCode, city, phone, addressline1, country, postalCode,territory,officelocation)
VALUES ('jovian', 'Chennai', '+919744323487', '3/7, Beach', 'India', '560220','South',POINT(3,2));

Error Code: 1062. Duplicate entry 'jovian' for key 'offices.PRIMARY'

Retrieve and display just the city and phone number information for each office.

SELECT city, phone FROM offices;

EXERCISES:

Try inserting an entry into employees with an invalid value for officeCode.

Try inserting an entry into employees with an invalid value for reportsTo.

Create a new office location and add some employees for the new location.

Try inserting an entry into employees with an invalid value for officeCode.

INSERT INTO employees (employeeNumber, lastname, firstname, extension, email, reportsTo,jobTitle,officeCode)
VALUES (2, 'Bruce', 'Wayne', 'jovian.ai', 'bruce@jovian.ai', 1002,'CEO',12012);

Error Code: 1452. Cannot add or update a child row: a foreign key constraint fails (`classicmodels`.`employees`, CONSTRAINT `fk_Employees_Offices` FOREIGN KEY (`officeCode`) REFERENCES `offices` (`officeCode`))

Try inserting an entry into employees with an invalid value for reportsTo.

INSERT INTO employees (employeeNumber, lastname, firstname, extension, email, reportsTo,jobTitle,officeCode)
VALUES (2, 'Bruce', 'Wayne', 'jovian.ai', 'bruce@jovian.ai', 1234,'CEO',123);

-- Error Code: 1452. Cannot add or update a child row: a foreign key constraint fails (`classicmodels`.`employees`, CONSTRAINT `fk_Employees_Employees` FOREIGN KEY (`reportsTo`) REFERENCES `employees` (`employeeNumber`))

Create a new office location and add some employees for the new location.

INSERT INTO offices (officeCode, city, phone, addressline1, country, postalCode,territory,officelocation)
VALUES (197, 'Helsinki', '+44 20 7000 7000', 'Regents Park, Finland NW1 4SA', 'Finland', '020','North',POINT(51.5,0.12));

INSERT INTO employees (employeeNumber, lastname, firstname, extension, email, reportsTo,jobTitle,officeCode)
VALUES (19, 'Ray', 'Palmer', 'jovian.ai', 'ray@jovian.ai', 1002,'Engineer',197);


INSERT INTO employees (employeeNumber, lastname, firstname, extension, email, reportsTo,jobTitle,officeCode)
VALUES (20, 'Alfred', 'Pennyworth', 'jovian.ai', 'alfred@jovian.ai', 1,'Logistics Head',197);

EXERCISES:

List the customers in the United States with a credit limit higher than \$1000.

List the employee codes for sales representatives of customers in Spain, France and Italy. Make another query to list the names and email addresses of those employees.

Change the job title "Sales Rep" to "Sales Representative"

Delete the entries for Sales Representatives working in London.

Show a list of employees who are not sales representatives

Show a list of customers with "Toys" in their name

List the customers in the United States with a credit limit higher than \$1000.

SELECT * FROM customers WHERE country='USA' AND creditlimit>1000;

List the employee codes for sales representatives of customers in Spain, France and Italy. Make another query to list the names and email addresses of those employees.

SELECT DISTINCT salesRepEmployeeNumber FROM customers WHERE country='Spain' OR country='Italy' OR country='France';


SELECT firstname, email FROM employees WHERE employeenumber IN (1370,1337,1702,1401);

Change the job title "Sales Rep" to "Sales Representative"

SET SQL_SAFE_UPDATES = 0;

UPDATE employees SET jobTitle = 'Sales Representative' WHERE jobTitle = 'Sales Rep';

SET SQL_SAFE_UPDATES = 1;

Delete the entries for Sales Representatives working in London.

SET foreign_key_checks=0;

DELETE FROM employees WHERE jobTitle = 'Sales Representative' AND officeCode=7;

SET foreign_key_checks=1;

Show a list of employees who are not sales representatives

SELECT * FROM employees WHERE jobTitle != 'Sales Representative' ;

Show a list of customers with "Toys" in their name

SELECT * FROM customers WHERE customername LIKE '%Toys%';

EXERCISES:

List the 5 most expensive products from the "Planes" product line

Identify the products that are about to run out of stock (quantity in stock < 100)

List 10 products in the "Motorcycles" category with the lowest buy price and more than 1000 units in stock

List the 5 most expensive products from the "Planes" product line

SELECT productname FROM products where productline = 'Planes' ORDER BY buyprice DESC LIMIT 5;

Identify the products that are about to run out of stock (quantity in stock < 100)

SELECT productname,quantityinstock FROM products WHERE quantityinstock<100;

List 10 products in the "Motorcycles" category with the lowest buy price and more than 1000 units in stock

SELECT productname,buyprice,quantityinstock,productline FROM products WHERE productline='Motorcycles' AND quantityinstock>1000 ORDER BY buyprice LIMIT 10;

EXERCISE: Add, remove and modify one column in each of the tables created above. What happens when you rename or remove a column that is a primary key?

Add

ALTER TABLE customers ADD COLUMN status VARCHAR(15)AFTER creditLimit ;

Remove

ALTER TABLE customers DROP COLUMN status;

Modify

ALTER TABLE customers CHANGE postalcode postalcode_zip CHAR(50);

Rename

ALTER TABLE customers CHANGE customernumber custnumber CHAR(50);

Error Code: 3780. Referencing column 'customerNumber' and referenced column 'custnumber' in foreign key constraint 'fk_Orders_Customers' are incompatible.

Remove

ALTER TABLE customers DROP COLUMN customernumber;

Error Code: 1829. Cannot drop column 'customerNumber': needed in a foreign key constraint 'fk_Orders_Customers' of table 'Orders'
